Winradio WR-LNA-3500 Малошумный усилитель
|
Описание: |
This device contains an ultra-low noise figure preamplifier designed to operate in the range of 30-3500 MHz. While it is ideally matched to WiNRADiO VHF/UHF receivers, it can be also used to improve sensitivity of most third party receivers.
The amplifier employs the latest Silicon Germanium Heterostructure Bipolar Transistor technology (SiGE HBT) to achieve its excellent performance, in terms of high gain, low noise figure and excellent third-order intercept.

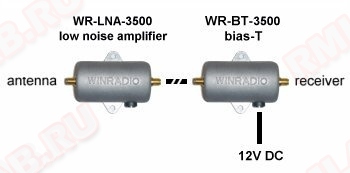

The device is housed in a sturdy die-cast package which can be mounted indoors as well as outdoors, and powered either locally or via the coaxial cable. It is suited for consumer as well as professional applications.
Технические характеристики
- Ultra low noise figure amplifier
- 1.7 dB @ 500 MHz
- 30 dBm @ 500 MHz
- 2 x SMA
- OD=5.5mm ID=2.5mm (center positive)
- 7-15V DC @ 150 mA max(can be supplied either directly or via coax cable)
- Diecast aluminium
- 60 x 35 x 30 mm (2.3 x 1.4 x 1.2 in)
- 105 grams (3.8 oz)
